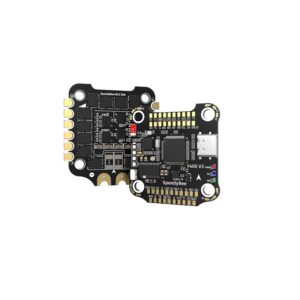

SpeedyBee SB-F4V3-50-STACK

Flight Controller:

• MCU: STM32F405 (offers better performance than F411)

• IMU (Gyro): BMI270

• USB Port: Type-C

• Barometer: Built-in

• OSD Chip: AT7456E

• Bluetooth: Built-in for wireless configuration via SpeedyBee app

• Firmware Support: Betaflight (default), EMUFlight, INAV

• UARTs: 4 x UARTs for receiver, VTX, camera, GPS

• BEC Outputs: 9V 2A and 5V 2A

• Battery Support: 3S to 6S LiPo (11.1V–25.2V)

• Mounting Pattern: 30.5 x 30.5 mm​

ESC:

• Type: BLHeli_S 4-in-1 ESC

• Current Rating: 50A per ESC

• TVS Diode: For surge voltage protection

• Capacitors: Japan-made TDK SMT capacitors

• External Capacitor: 1500uF low ESR capacitor​Robu+2mepsking.com+2spotpear.com+2mepsking.com+4spotpear.com+4Robu+4airoboo.in+1Robu+1spotpear.com+4Robu+4airoboo.in+4

Package Includes:

• 1 x SpeedyBee F405 V3 Flight Controller

• 1 x SpeedyBee BLS 50A 4-in-1 ESC

• 1 x 35V 1500uF low ESR Capacitor

• 1 x M3 nylon nut

• 5 x M3 Silicone O-rings

• 5 x M3*8mm Silicone grommets (for FC)

• 5 x M3*8.1mm Silicone grommets (for FC)

• 1 x SH 1.0mm 15mm length 8-pin cable (for FC-ESC connection)

• 5 x M3*30mm inner hexagon screws

• 1 x DJI 6-pin capable cable (80mm)

• 1 x XT60 Power cable (70mm)
